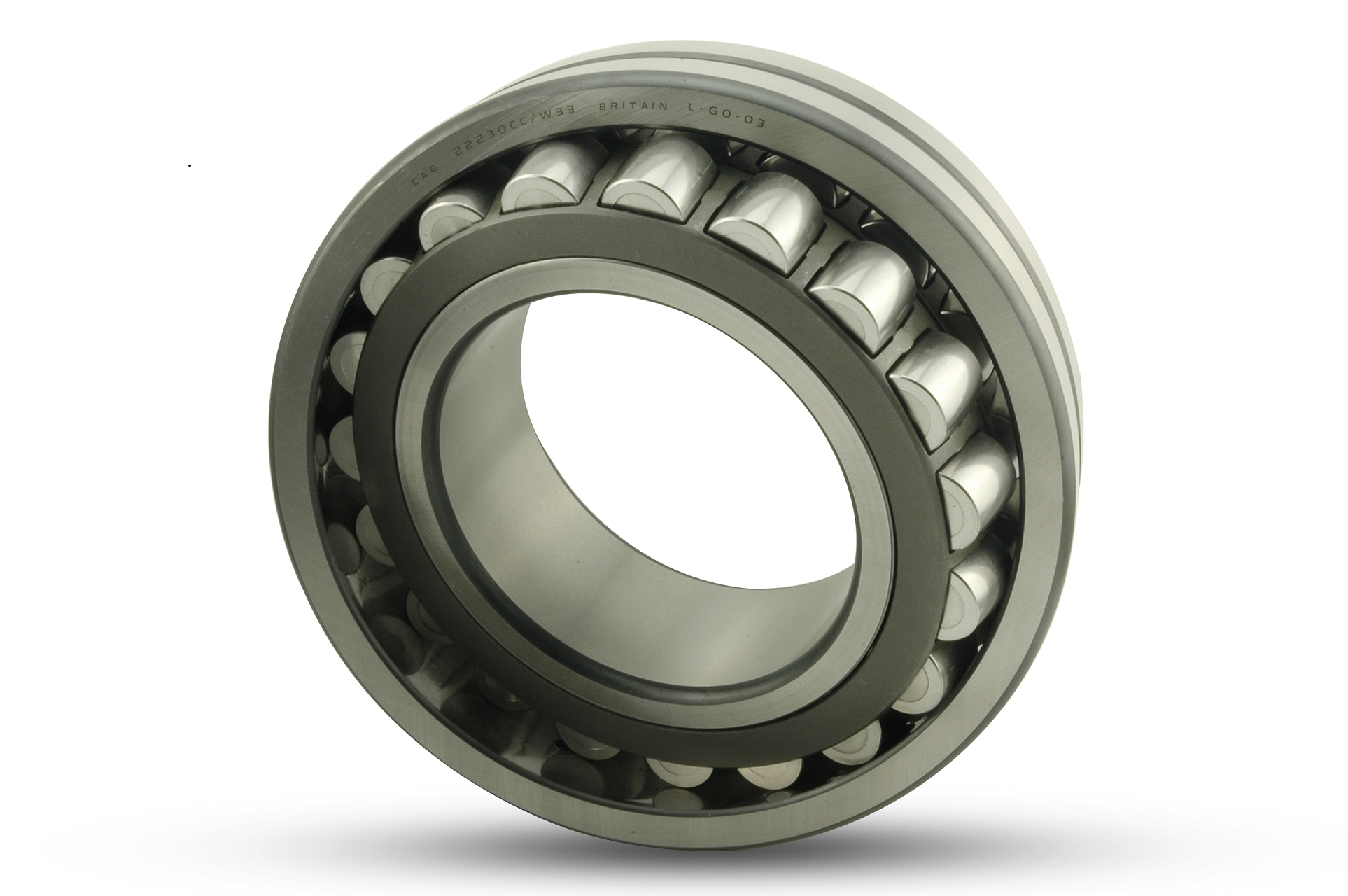

CAE self-aligning roller bearing is non-split type biserial transverse bearing. There are two ways of cydariform rollers, a common spherical raceway of the outer ring, two rollers of the inner ring with an angle of the vertical axis of the bearing. The centre of sphere of the outer roller sphere raceway lies onto the bearing axle. Hence, this type of the bearing belongs to the self-aligning bearing, and can bear major error of centration. Self-aligning roller bearing is designed to be excellence, not only can bear high radial load, but also can bear the folded axis load functioning in two directions.
    For easy installation, all self-aligning roller bearings are equipped with cylinder bore or conical bore. The taper of the conical bore is 1:12 (suffix K) and 1:30 (suffix K30), which specifically depends on the series of the bearing.

Retainer
    According to the applying occasions, CAE self-aligning roller bearing has several different types of retainer materials and shapes as below.
    Type CC: Two window type retainers made of drawing steel, inner ring with no flange, leading by the inner ring.
    Type CA: Forked type retainer made of machinery cutting brass, inner ring with orientation flange on both sides, leading by the inner ring.
    Type E: Two window type stamping retainers, inner ring with no flange, leading by the inner ring or the retainer. All type E bearings possess optimized interior design to enhance the bearing capacity.

Vibration occasion specialized self-aligning roller bearing

   The self-aligning roller bearings applied on vibrating machines by CAE suffer from severe operating conditions. The vibration makes the bearing sustain very heavy load, including impact alternating load.
The additional load on the bearing is generated due to the higher acting force generated from higher accelerated velocity existing in the application. Heavy load will generate prodigious flexural deflection onto the axle and the bearing box, which request bearing to be capable of sustaining the non-coaxial, and also the higher speed and contaminated environment.
   CAE provides self-aligning roller bearing with cylinder bore or conical bore and surface hardening drawing steeling made retainer. The optimized interior design can reduce the rotation torque. The criteria of radial internal play is C4, there’s a lubrication groove and three lubrication holes on the outer ring.
